H-Section vs I-Beam: Key Differences for Structural Applications

What distinguishes H-sections from I-beams in shape?

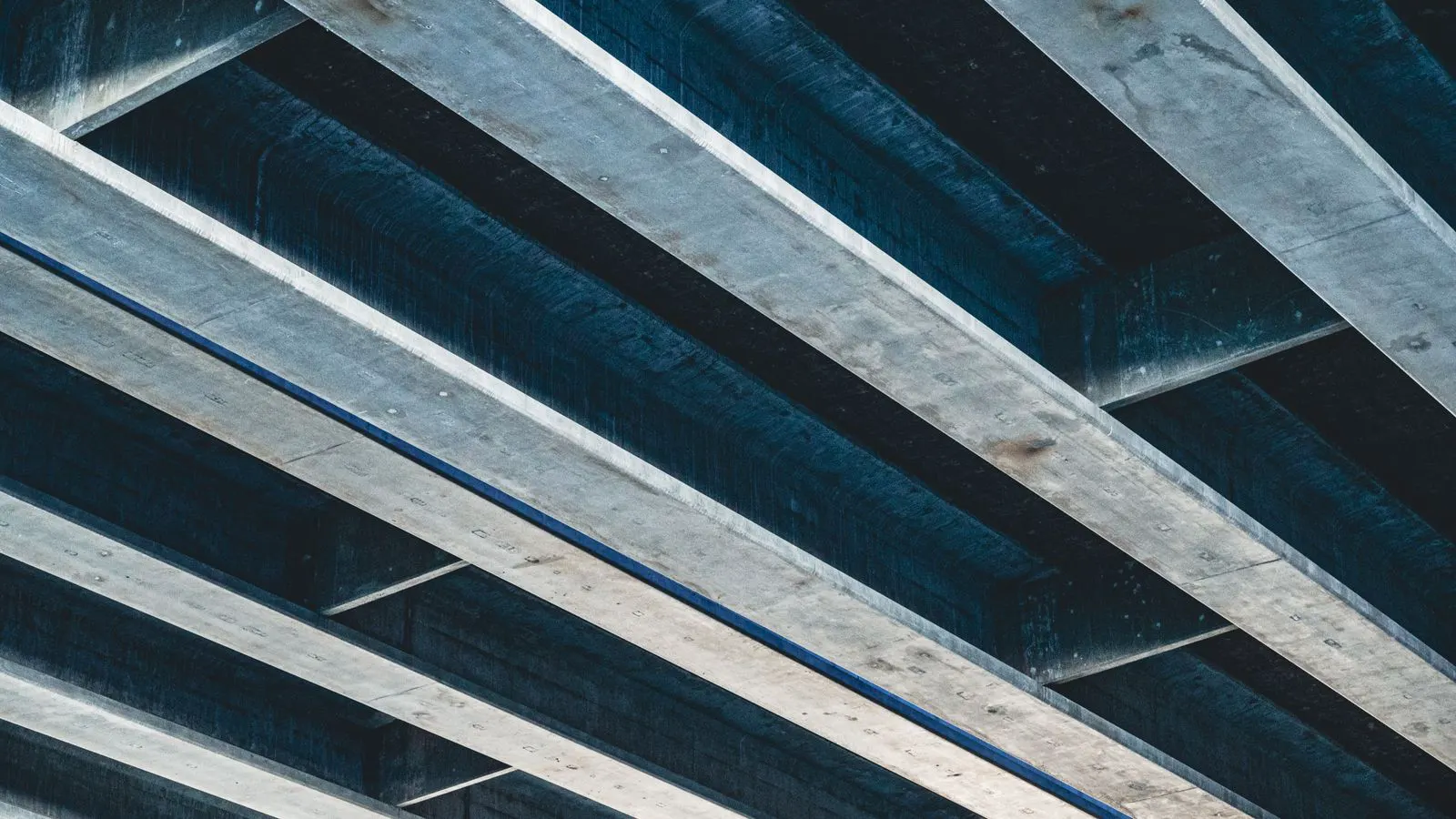

The visual difference between these two profiles appears in the cross-section geometry. An H-section, often called an European wide-flange beam, has flanges that are parallel to the web. The flanges are typically of equal width, and the web runs between them. This creates a shape that resembles the letter H. The I-beam, known in other regions as an American wide-flange beam, has flanges that taper inward toward the web. The flange width is larger at the outer edge and narrower where it meets the web. This tapering shape resembles the letter I.

The geometry affects how each section resists bending. In an H-section, the distance from the neutral axis to the flange centroid is the same on both flanges. This symmetry helps when loads act in more than one direction. In an I-beam, the tapered flanges concentrate material farther from the neutral axis in the bending plane. This arrangement improves the section modulus for bending about the strong axis.

Both profiles are rolled from steel billets and cut to length. Surface preparation varies by application, with some members receiving primer coatings or galvanized finishes. The choice between them starts with the load path and the connection points.

How do H-section and I-beam dimensions compare?

Dimensional selection follows standard series, though specific sizes vary by region and manufacturer. H-sections often come in series that group members by depth and flange width. Common designations reference depth in millimeters or inches, with flange and web thicknesses stepping up in predictable increments. An H-section with a 300 mm depth might have flanges 200 mm wide and a web thickness around 10 to 15 mm, depending on the grade and series.

I-beam dimensions follow a different pattern. The flange width is usually larger than the H-section equivalent at the same depth. For a 300 mm deep I-beam, flanges might measure 200 to 300 mm wide, with a more pronounced taper. Web thicknesses can be thinner for the same depth because the flange geometry handles more bending load.

When comparing H-beam dimensions and I-beam selection, engineers look at section properties. The area of the cross-section determines weight per unit length. The second moment of area, or moment of inertia, governs stiffness and deflection limits. The section modulus controls bending stress capacity. H-sections often show similar values for strong and weak axis properties, while I-beams show a significant gap between strong and weak axis performance.

When should you choose an H-section for structural steel?

Columns are the primary application for H-sections. Axial loads from upper floors or roof structures push down on columns that may also experience lateral forces from wind or seismic activity. H-sections handle these combined loads efficiently because the flanges resist bending in both directions. A column in a multi-story building might carry vertical loads from three or four levels above while resisting lateral drift. The symmetrical flanges provide uniform resistance without requiring additional bracing in every direction.

Moment connections also favor H-sections. In a steel frame, a beam connects to a column with a plate or bolted connection. H-sections allow the connection plate to sit flush against the flange. This flat surface makes welding or bolting cleaner and more reliable. The flange width stays constant along the length, so the connection does not interfere with the flange taper.

Bracing systems benefit from H-sections too. Diagonal braces in braced frames often use H-profiles because they connect to both the top and bottom chords. The parallel flanges align with the chord members, reducing the angle of connection. This simplifies fabrication and field assembly.

When is an I-beam the better choice?

Beams that span between columns in a single direction fit the I-beam profile well. A simply supported beam in a floor system carries loads from deck panels or joists. The load pushes down, and the beam bends about its strong axis. I-beams optimize material for this single-axis bending. The tapered flanges place steel farther from the neutral axis, increasing the section modulus without adding excess weight.

For long spans, deflection control becomes a concern. I-beams can achieve greater depths with lighter weights than equivalent H-sections for the same span. This matters in structures where headroom is limited. A warehouse roof truss or a factory floor beam might use an I-beam to maintain clear space below.

The flange taper also affects connection details. In an I-beam, the flange narrows toward the web. This means a connection plate bolted to the flange must account for the changing width. Engineers often use wider plates or position bolts near the outer flange edge. This detail is manageable but requires careful layout.

H-section vs I-beam: A practical comparison

The table below summarizes the practical differences for structural applications.

Option	Best for	Limitations
H-section	Columns, multi-axis bending, bracing	Heavier for single-axis bending; flanges may limit close connections
I-beam	Single-axis beams, long spans, floor framing	Poor weak-axis resistance; flange taper complicates connections
Wide flange H	Heavy columns, seismic bracing	Higher cost per ton than standard H; fabrication requires precision
Tapered I	Long-span beams, lightweight structures	Requires stiffeners at concentrated loads; weak-axis buckling risk
Standard I	General floor beams, small spans	Limited depth options; may need splices for long distances

The selection depends on the load case. If the member carries axial load plus moment, the H-section wins. If it carries only bending in one direction, the I-beam can be lighter and cheaper. The table is a starting point, not a rule. Every project has unique constraints.

How do connections and fabrication differ?

Connection details drive much of the cost difference between these profiles. H-sections have flat flanges that run parallel to the web. A bolted connection can use a single plate bolted to the flange. The plate sits flush against the web, and the bolts align with the flange axis. This symmetry allows for simple layouts. In a moment connection, the plate might extend from the flange into the web, creating a stiff joint.

I-beam connections require more planning. The flange tapers, so a plate bolted near the outer edge may not align with the web. Engineers often use two plates, one on each flange, or a single plate positioned toward the outer edge. The taper also means the flange thickness changes along the width. This can affect weld preparation if the connection is welded.

Fabrication shops handle both profiles routinely, but the tooling differs. H-sections often use standard flange clamps and alignment fixtures. I-beams may require custom jigs to hold the taper during welding or drilling. Field assembly is similar, but the connection geometry changes. Bolt hole spacing must match the flange width at the connection point.

What about material efficiency and cost?

Steel consumption per unit load capacity varies between the two profiles. I-beams generally use less steel for the same bending capacity in one direction. The tapered flanges place material where it resists bending most effectively. H-sections use more steel for the same single-axis capacity because the flanges remain wide near the web.

Cost depends on material price, fabrication labor, and connection complexity. A lighter I-beam saves on steel and shipping. However, if the connection requires extra plates or custom fabrication, the labor cost rises. H-sections may cost more per ton but can reduce connection labor because the flanges are flat and uniform.

For a typical floor system, an I-beam might reduce steel weight by 10 to 20 percent compared to an H-section of similar depth. This saving offsets higher fabrication costs in many cases. For a column, the H-section may end up cheaper because the connection labor savings outweigh the material penalty.

How do standards and specifications affect selection?

Design standards provide the framework for checking these profiles. Load combinations, deflection limits, and connection rules come from national or regional codes. The specific standard number varies by country, but the principles are similar. Engineers calculate the factored loads, select a trial section, check bending stress, shear, and deflection, then verify stability.

Material grade affects the allowable stress. Higher-grade steel allows more capacity per unit area, but it costs more. Most structural members use medium-carbon steel in grades that balance strength and weldability. The choice of grade depends on the project budget and the expected service life.

Certification and testing matter for large projects. Steel mills provide mill test certificates that verify chemical composition and mechanical properties. Fabricators and contractors may require additional testing, such as bend tests or impact tests, depending on the application.

What mistakes should you avoid when selecting H-section vs I-beam?

The most common error is choosing based on shape alone without checking the load path. A column that carries only axial load might use a lighter section, but if lateral loads are present, the H-section provides better multi-axis resistance. An engineer who ignores the weak-axis moment may specify an I-beam that buckles under torsion.

Another mistake is neglecting connection details. A beautiful section on paper fails if the connection cannot transfer the load. H-sections simplify this, but even they require proper bolt spacing and plate thickness. I-beams demand more care with the tapered flanges.

Finally, do not overlook service conditions. Corrosion, fire exposure, and fatigue all affect the section choice. A member in a marine environment may need a heavier section to account for corrosion allowance. A fire-exposed beam may require a protective coating or a larger section to maintain strength at elevated temperatures.

How do you verify the selection before fabrication?

Verification happens at three stages. First, the engineer checks the section against the design code. This includes bending stress, shear, deflection, and stability. The check produces a set of numbers that must stay within limits. Second, the fabricator reviews the connection details and confirms that the shop drawings match the field conditions. Third, the site inspector checks the as-built member against the drawings before erection.

Each stage catches different errors. The engineer catches the wrong section. The fabricator catches the wrong hole spacing. The inspector catches the wrong orientation. Missing one stage risks a costly rework or a safety issue.

The H-section vs I-beam choice is not a one-time decision. It affects the entire structural system. A column choice changes the bracing layout. A beam choice changes the floor span. The decision must fit within the overall design, not just the single member.

What does the final selection look like?

A well-chosen section balances load, span, connection, and budget. For a multi-story office building, H-sections dominate the columns and major bracing. I-beams handle the floor beams between columns. The combination uses each profile where it performs best.

For a warehouse with long spans, I-beams may carry the roof deck beams. H-sections might appear in the perimeter columns that resist wind loads. The design reflects the load path, not a preference for one shape over the other.

The key is to match the section to the job. The H-section suits multi-axis loads and compact connections. The I-beam suits single-axis bending and long spans. Both are proven, reliable profiles. The choice comes down to the specific demands of the structure.
